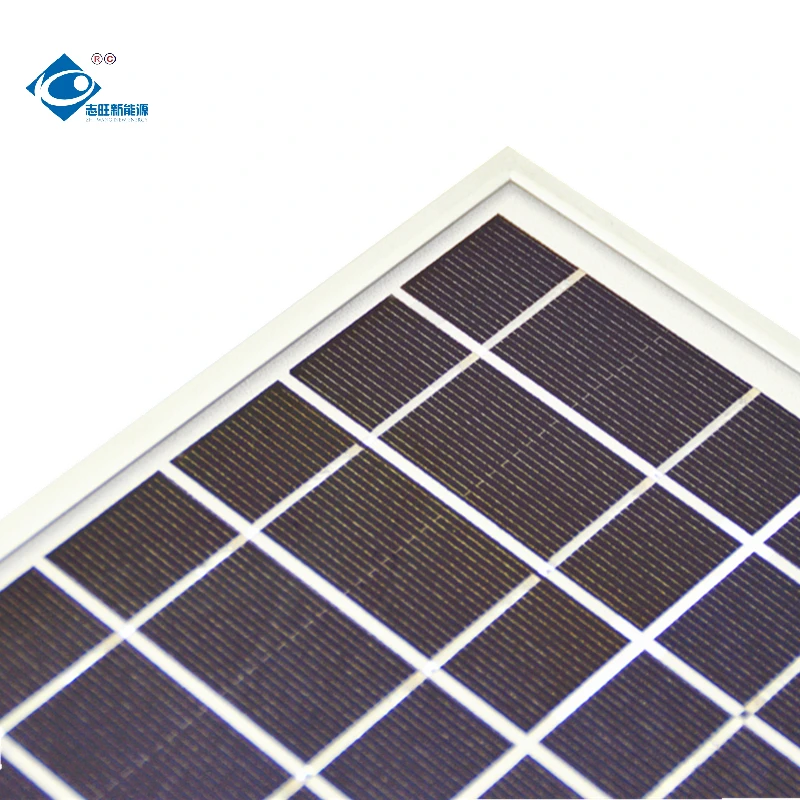

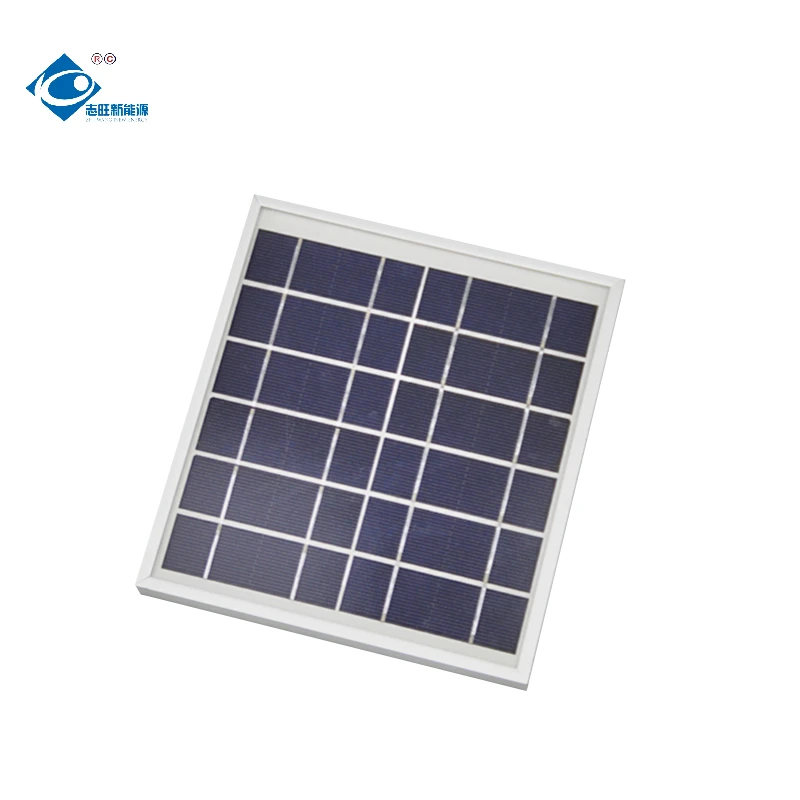

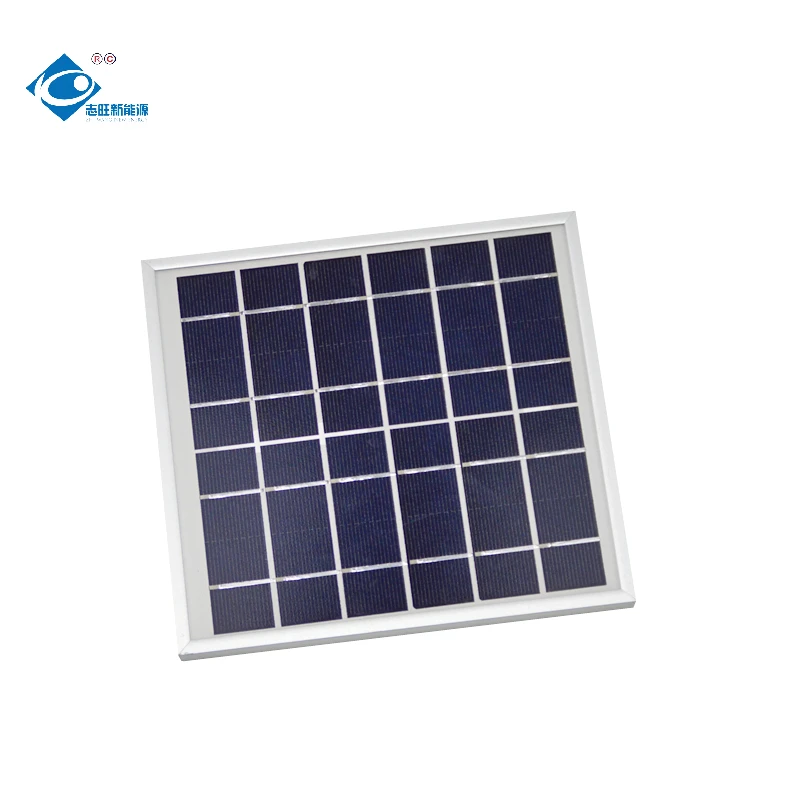

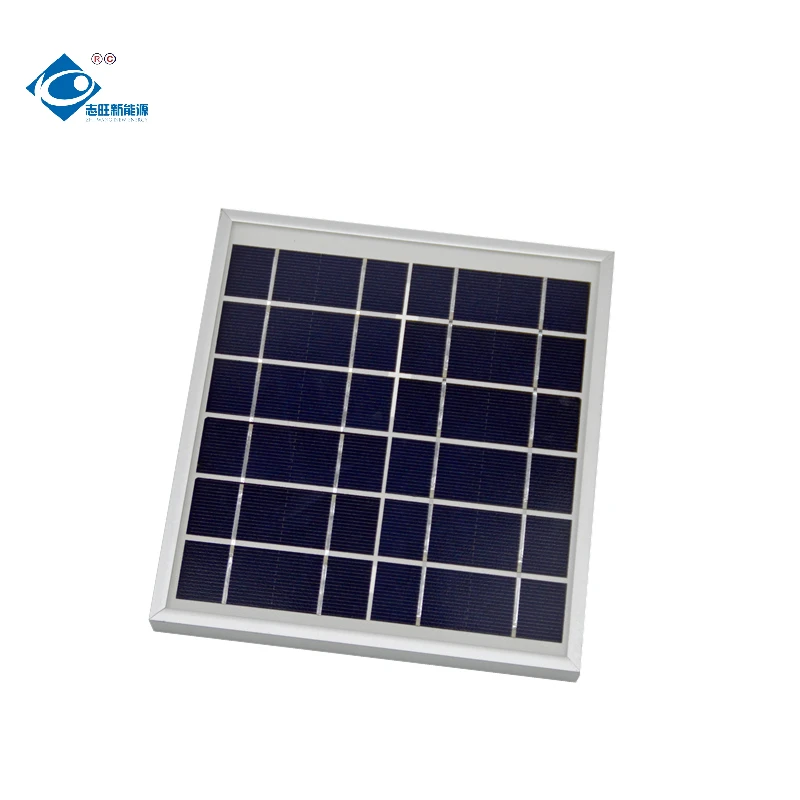

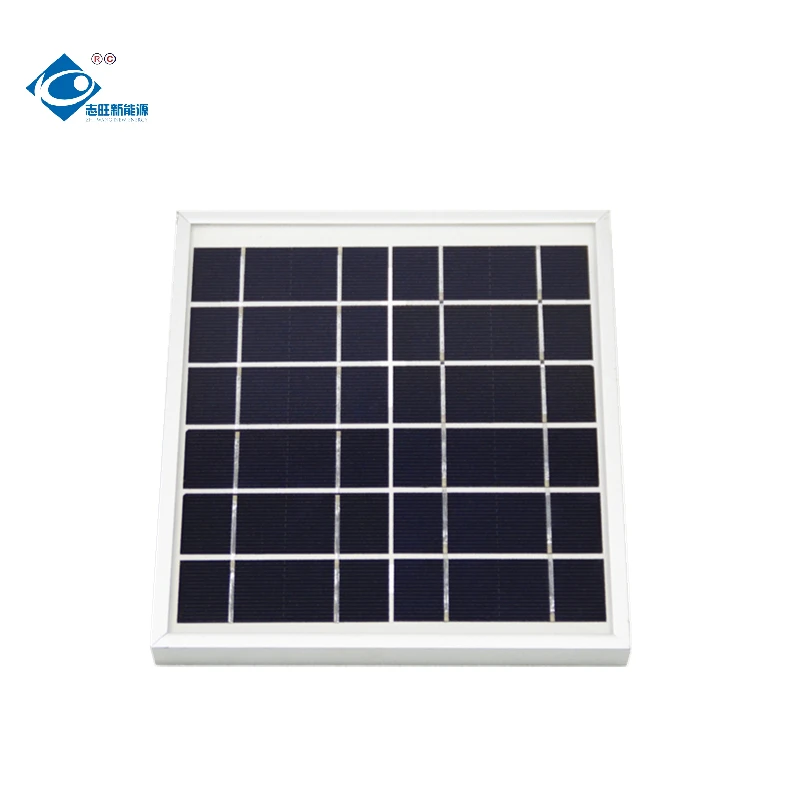

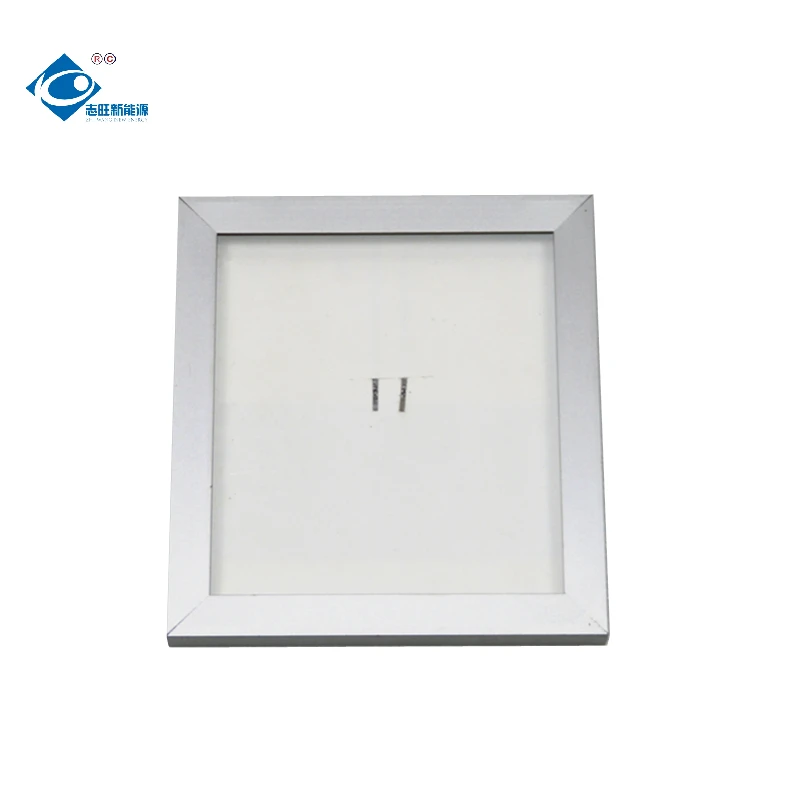

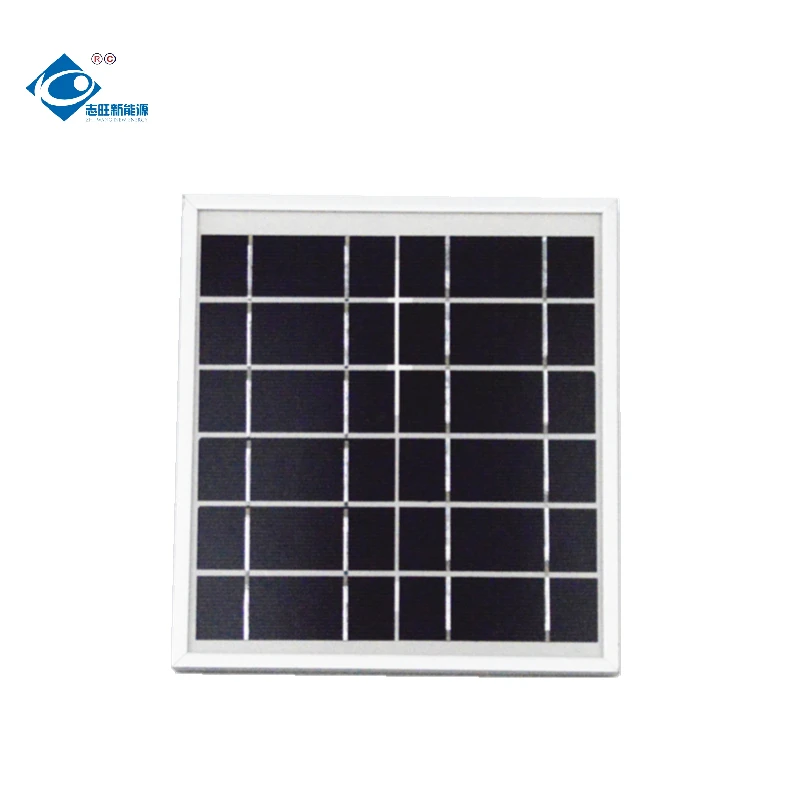

4W Portable Glass Laminated Solar Panel Charger ZW-4W-6V-1 Aluminum Frame Glass Solar panel 6V
| Model: | ZW-4W-6V-1 |
| Brand: | Zhiwang |
| Outer Frame Size: | 190mmx175mmx17mm |
| Battery: | 12 |
| Peak power: | 4W |
| Max voltage: | 6V |
| Max current: | 0.67A |
| Open voltage: | 6.9V |
| Short current: | 0.72A |
| Weight: | 0.45KG |
| Size of cell: | 26mm * 78mm |
| Front Glass: | 3.2mm, High Transmission, Low iron, tempered Glass |
| Color: | Customize |
| Raw Material: | Glass Plastic Frame or Aluminum Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance |
| Operating Temperature(°C) | -40°C ~ + 85°C |
| Maximum System Voltage | 10V(UL)/15V(IEC) DC |
| Maximum Rated Current Series | 2A |
| Standard Testing Conditions | AM1.5 E=1000W/m2 T=25℃ Luminous intensity: 38000Lux Test ambient temperature 25 ° C ±2 ° C
The humidity of the test environment is 60%-70%
Light intensity 40*1000 LUX
The vertical distance of light is 30cm
Open-circuit test multimeter
Load the test dedicated test stand
Application battery charging
Storage environment 20cm above the ground; Humidity of 60% 70%; The normal temperature |
| Nominal Operating Cell Temperature | 47+/-2°C |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
Features
1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.
10. Quality solar cells with high solar energy conversion up to 19.5%.
Quality Assurance Testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
